2.2-22kW FL Oil-Free Scroll

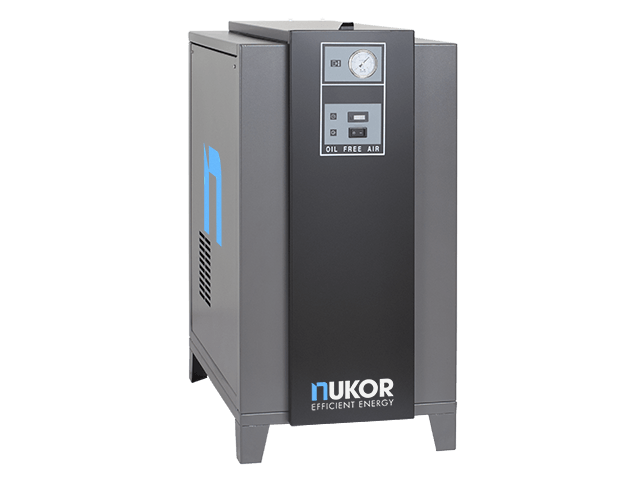

The Nukor NKC-S series of scroll air compressors offer many advantages over traditional reciprocating, diaphragm, and vane compressors because of their oil-free design, small size and incredibly quiet operation.

CLEAN & OIL FREE

No oil. All Nukor NKC-S scroll compressors are 100% oil-free enabling their use in scientific, medical and food industry applications where pure, oil-free air is essential. All units are available with integrated desiccant dryers.

ECONOMICAL

For a given CFM, Nukor NKC-S scroll compressors are at a similar price point to traditional “thumper” piston type compressors making their efficiency, quietness and small size surprisingly affordable.

QUIET

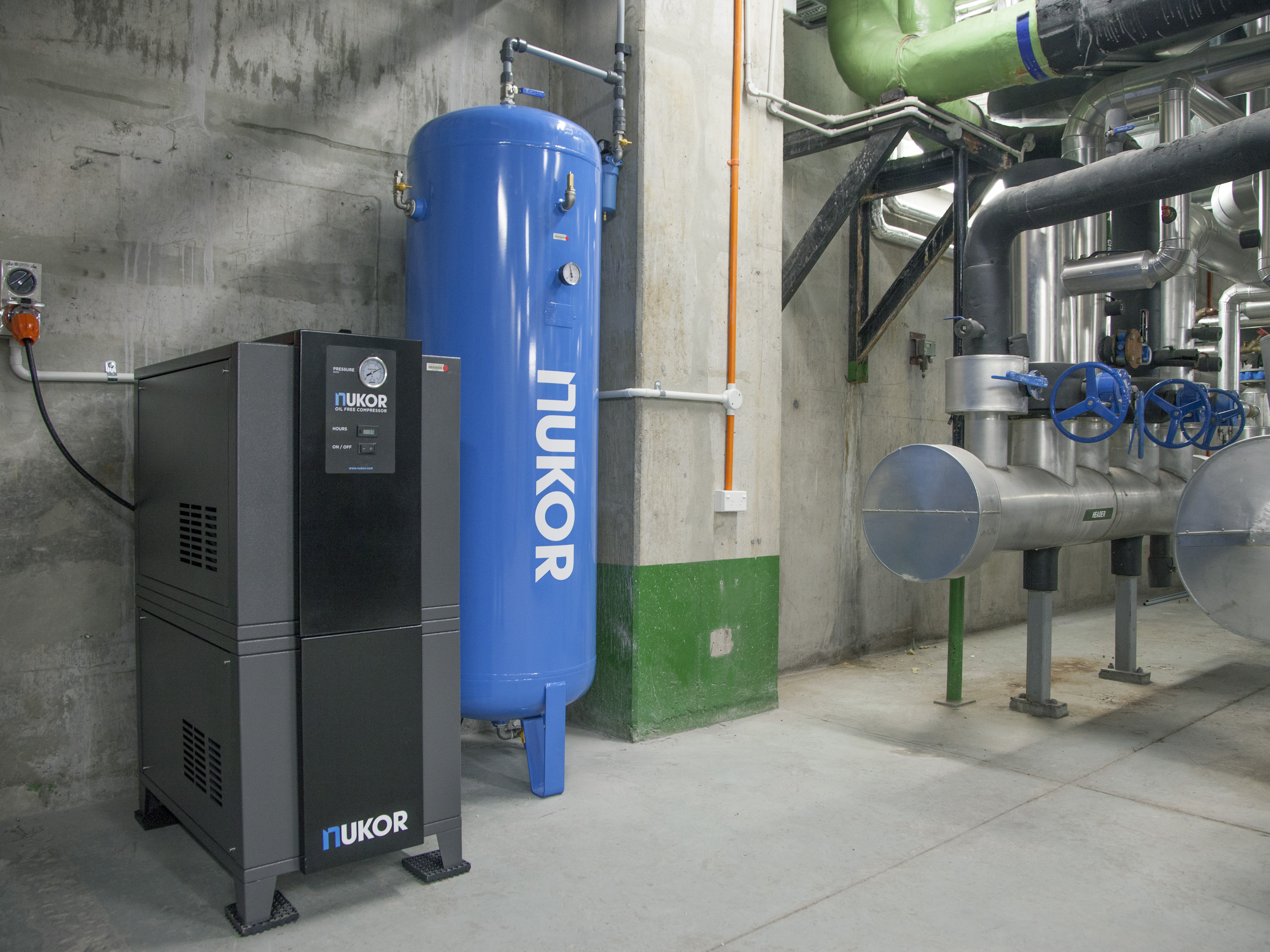

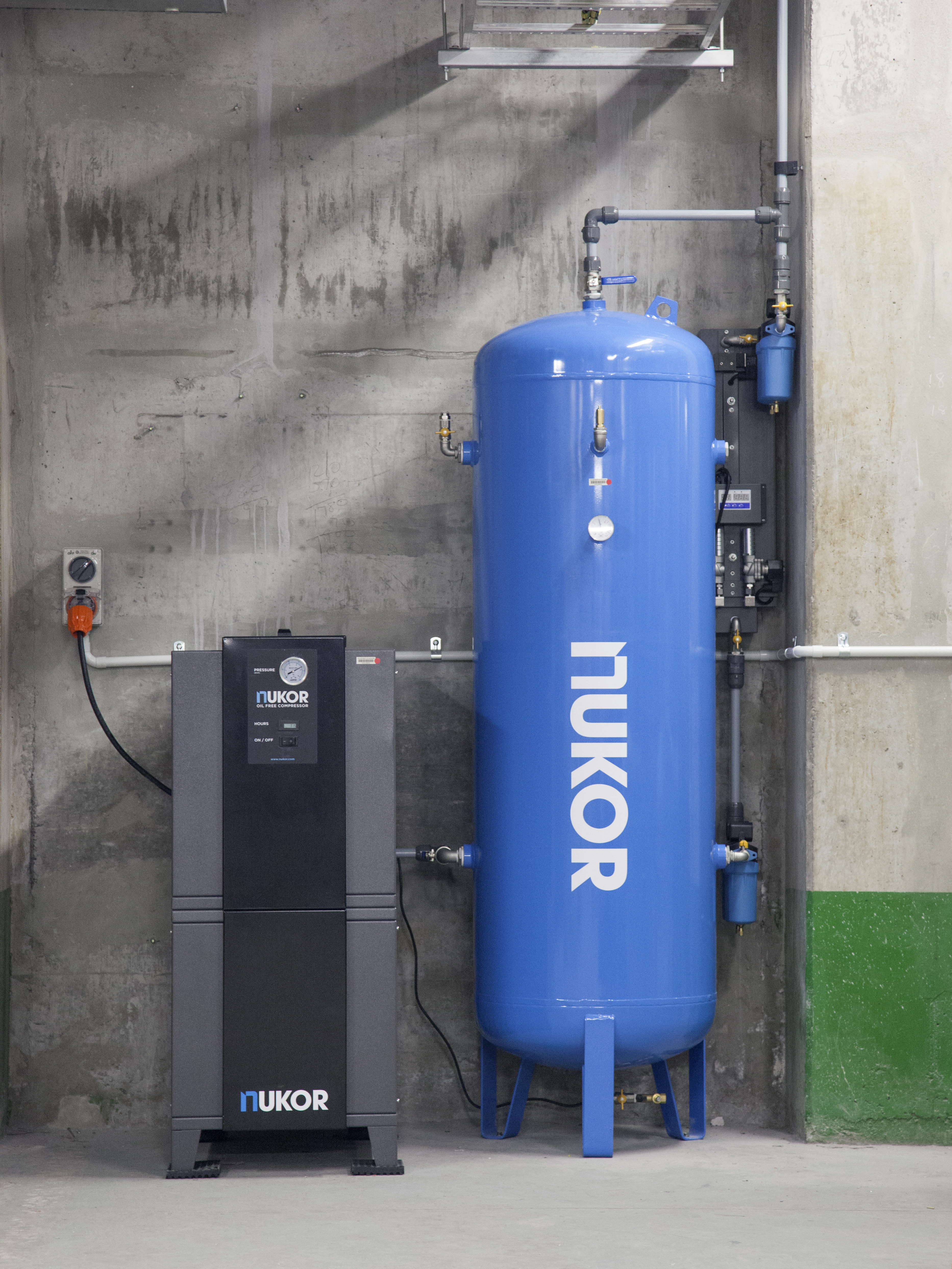

By their very design Nukor NKC-S scroll compressors are almost silent and vibration-free. This enables them to be installed in areas where a typical compressor would be far too loud.

EFFICIENT & RELIABLE

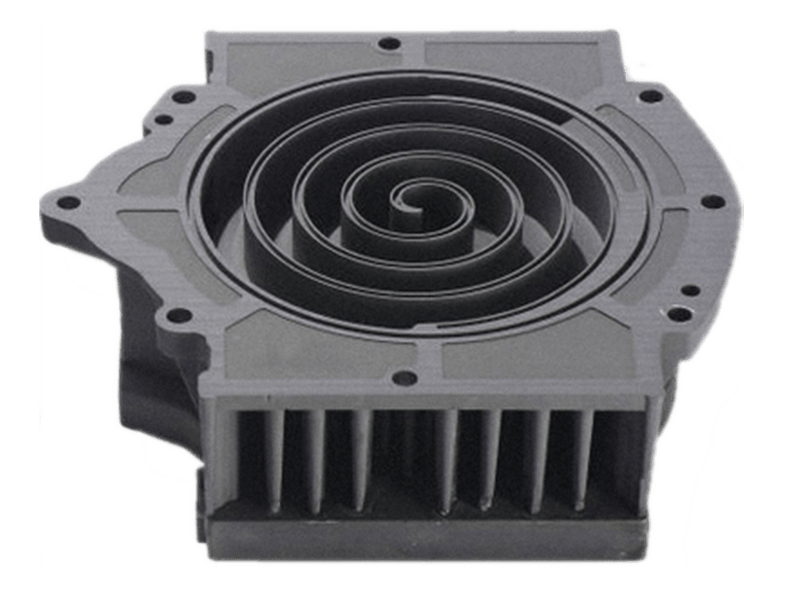

The inherent design of the scroll compression process has almost 100% volumetric efficiency. The low operating RPM and simple design with only two primary moving parts means that they are incredibly reliable giving low operating costs and sparse servicing intervals. Generally servicing only requires the replacement of the intake air filter at 2000 hour intervals and greasing electric motor bearing at 5000 hour intervals.

ELECTRONIC CONDENSATE DRAIN

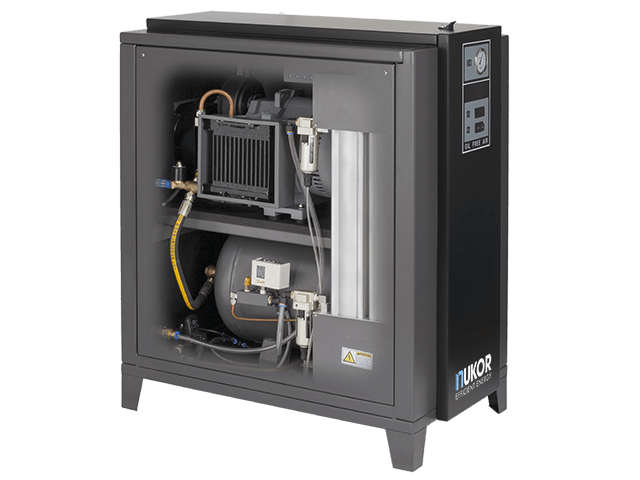

AVAILABLE WITH INTEGRATED DESICCANT DRYER

NKC-S 2.2 TDF (230V Single Phase, 50L Tank & Dryer)

Power (kW) / (HP)2.2 / 3
Output (L MIN / CFM)240 / 8.5
Pressure (Bar / PSI)8 / 116
Noise (dBA)65
LxWxH (mm)970 x 520 x 1025
Weight (Kg)160
Port Size (BSP)1/2″



NKC-S 3 TDF (400V Three Phase, 50L Tank & Dryer)

Power (kW) / (HP)3 / 4
Output (L MIN / CFM)360 / 12.5
Pressure (Bar / PSI)8 / 116
Noise (dBA)65
LxWxH (mm)970 x 520 x 1025
Weight (Kg)160
Port Size (BSP)1/2″



NK-C-S-4.5

Power (kW) / (HP)4.5 / 6
Output (L MIN / CFM)480 / 17
Pressure (Bar / PSI)8 / 116
Noise (dBA)68
LxWxH (mm)885 x 520 x 1220
Weight (Kg)220
Port Size (BSP)1″



NK-C-S-6

Power (kW) / (HP)6 / 8
Output (L MIN / CFM)720 / 25
Pressure (Bar / PSI)8 / 116
Noise (dBA)70
LxWxH (mm)885 x 520 x 1220
Weight (Kg)220
Port Size (BSP)1″



NK-C-S-9

Power (kW) / (HP)9 / 12
Output (L MIN / CFM)1100 / 39
Pressure (Bar / PSI)8 / 116
Noise (dBA)72
LxWxH (mm)1000 x 750 x 1700
Weight (Kg)360
Port Size (BSP)1″



NK-C-S-12

Power (kW) / (HP)12 / 16
Output (L MIN / CFM)1450 / 51
Pressure (Bar / PSI)8 / 116
Noise (dBA)75
LxWxH (mm)1105 x 1000 x 1700
Weight (Kg)360
Port Size (BSP)1  1/2″



NK-C-S-18

Power (kW) / (HP)18 / 24
Output (L MIN / CFM)2200 / 78
Pressure (Bar / PSI)8 / 116
Noise (dBA)85
LxWxH (mm)1105 x 1000 x 1700
Weight (Kg)600
Port Size (BSP)1  1/2″



NK-C-S-1.5-P (Bare Scroll & Motor Assembly)

Power (kW) / (HP)1.5 / 2
Output (L MIN / CFM)160 / 5.6
Pressure (Bar / PSI)8 / 116
Noise (dBA)72
LxWxH (mm)310 x 315 x 325
Weight (Kg)15.5
Port Size (BSP)3/8″



NK-C-S-2.2-P (Bare Scroll & Motor)

Power (kW) / (HP)2 / 3
Output (L MIN / CFM)240 / 8.5
Pressure (Bar / PSI)8 / 116
Noise (dBA)75
LxWxH (mm)340 x 315 x 350
Weight (Kg)15.5
Port Size (BSP)3/8″



NK-C-S-3-P (Bare Scroll & Motor)

Power (kW) / (HP)3 / 4
Output (L MIN / CFM)360 / 12.5
Pressure (Bar / PSI)8 / 116
Noise (dBA)78
LxWxH (mm)340 x 315 x 350
Weight (Kg)23
Port Size (BSP)3/8″
