7.5-15kW NKC Screw

The Nukor NKC range of compressors offer an affordable way to bring rotary screw compressor technology to your workshop. Replace that old, inefficient and noisy thing out the back with a reliable, quiet, efficient rotary screw air compressor.

Models

QUIET

The NKC compressor series incorporate an oversized airend (pump) running at low RPM keeping sound levels down (<62db for the NKC-7.5).

RELIABLE

The oversized air-ends of the NKC series compressors are rated for use in compressors up to three times the size allowing the air-end to run at much lower RPM. Many other manufactures, even big brands are using very small airends running at high speeds causing reliability problems.

ALL STEEL

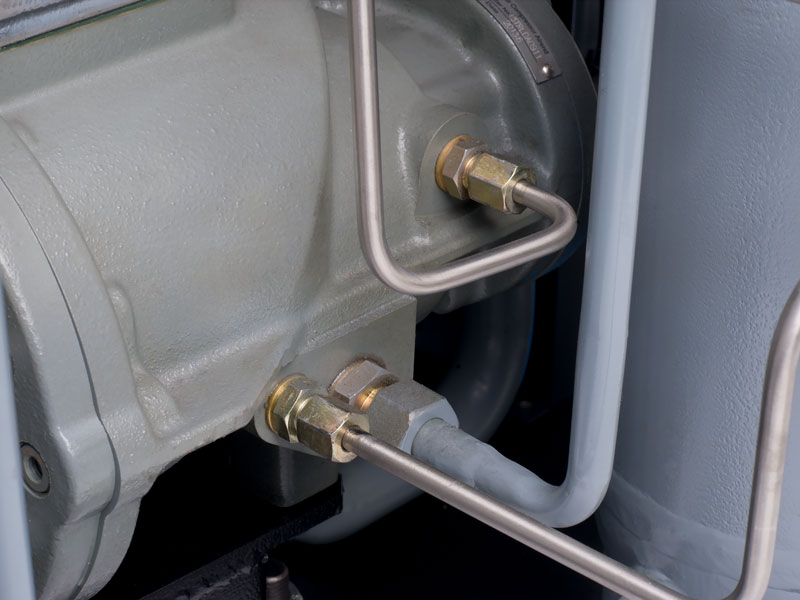

No rubber hoses. All Nukor compressors use solid hydraulic lines for all internal air and oil lines as opposed to rubber hoses that often leak oil inside the compressor cabinet.

ADVANCED

The rotary screw air-end (pump unit) of the NKC is of the latest rotor profile design and is highly efficient.

ALL IN ONE

Not just a compressor but a fully integrated compressed air package. The Nukor NKC range of compressors are all available with integrated refrigerated air dryers, line filters, and receivers (tanks).

SIZE

The integrated refrigerated air dryer, filters, and receiver allow for a much smaller package and thus overall unit footprint.

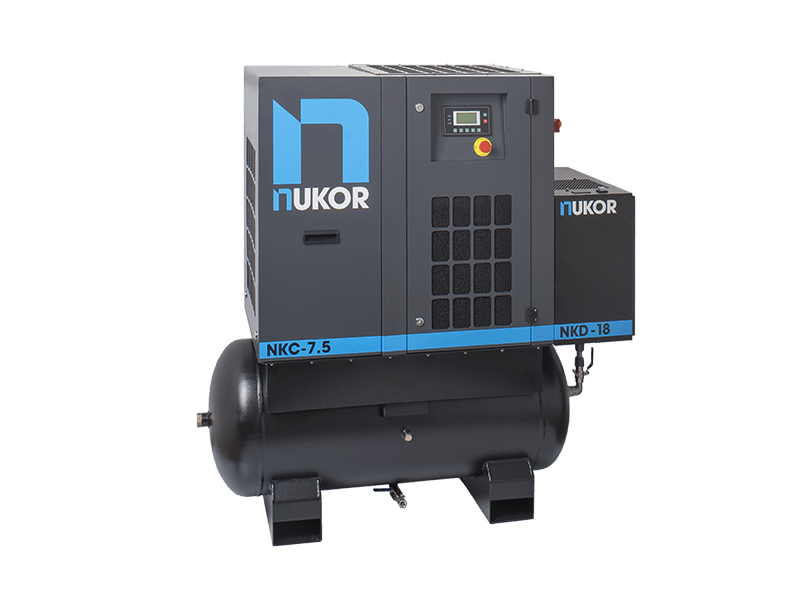

NKC-7.5

Power (kW) / (HP)7.5 / 10
Output (M³ / CFM)1.02 / 36
Pressure (Bar / PSI)8-12.5 / 116-180
Noise (dBA)62
LxWxH (mm)1000 x 700 x 990
Weight (Kg)285
Port Size (BSP)1/2″



NKC-11

Power (kW) / (HP)11 / 15
Output (M³ / CFM)1.60 / 56
Pressure (Bar / PSI)8-12.5 / 116-180
Noise (dBA)62
LxWxH (mm)980 x 710 x 1030
Weight (Kg)330
Port Size (BSP)3/4″



NKC-15

Power (kW) / (HP)15 / 20
Output (M³ / CFM)2.28 / 81
Pressure (Bar / PSI)8-12.5 / 116-180
Noise (dBA)62
LxWxH (mm)980 x 710 x 1030
Weight (Kg)350
Port Size (BSP)3/4″
