Air Filtration

Nukor’s range of air treatment filters virtually eliminate contamination within your air system and give peace of mind that your machinery and processes are supplied with clean, oil-free air. Sizes from 1-500 m3/min.

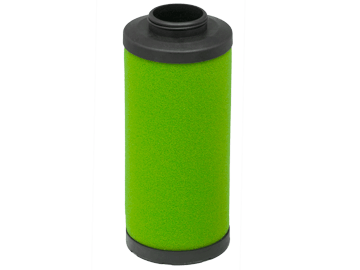

Nukor air treatment filters feature an all aluminium body complete with differential pressure gauges, high efficiency filter elements and automatic condensate drain.

NKF-A

High efficiency general purpose protection. Particle removal down to 1 micron, including water and oil aerosols. Generally placed before a refrigerated dryer.

Filter Micron1
Residual Oil Content:0.5mg/m3
Dry Pressure Drop:0.07bar
Wet Pressure Drop:0.14bar



NKF-B

High efficiency oil removal. Particle removal down to 0.01 micron, including water and oil aerosols. Generally placed after a refrigerated dryer and NKF-A filter.

Filter Micron0.01
Residual Oil Content:0.01mg/m3
Dry Pressure Drop:0.1bar
Wet Pressure Drop:0.2bar





NKF-C

Oil vapour and odour removal by activated carbon. Must be placed after a NKF-B filter.





Residual Oil Content:0.003mg/m3
Dry Pressure Drop:0.2bar
Wet Pressure Drop:0.3bar
